Sky High

In the mid 1960s, NASA was planning to send robotic probes to the Moon and planets as fast as it could build them, and it needed help from telescopes on the ground to support those missions. Most existing telescopes were fully booked, though, so they could offer little assistance. So Harlan J. Smith, the ambitious new director of McDonald Observatory, offered to help. He proposed that NASA pay for a big new telescope at McDonald. The University of Texas would pay for the dome, and much of the telescope's time would be dedicated to observing the worlds of the solar system.

Harlan J. Smith Telescope [Martin Harris/McDonald Observatory]

NASA agreed, and planning for the new telescope, which today bears Harlan Smith's name, began in 1964. The telescope's 107-inch mirror was made by Corning Glass — the same company that cast the 200-inch mirror for the Palomar telescope in the 1930s — using a relatively new technique. Chunks of silica were melted together to produce a mirror that was stronger and tougher than glass and that didn't "flex" as much under changing temperatures.

Construction was completed in 1968 on Mount Locke, not far from the observatory's original 82-inch telescope. Built by Westinghouse for about $5 million, the 160-ton telescope was then the third-largest in the world, with a light-gathering power one-quarter million times greater than the unaided eye. It began regular observations in 1969.

The telescope's planetary studies played a significant role in preparing for more detailed exploration of the solar system by spacecraft, and in understanding the results of those missions.

For almost a decade, the telescope also bounced a laser beam off mirrors left on the Moon by Apollo astronauts in a program called lunar laser ranging. These results helped refine the distance to the Moon and enabled a better understanding of its interior.

Today, many different instruments are fitted onto the Smith Telescope, enabling many different types of astronomical observations. The telescope has been extensively used to study the compositions of stars and the motions of galaxies, and to search for planets around other stars in our galaxy. It continues to be used every clear night of the year.

An almost-full Moon floats above the Smith Telescope. For its first decade, the telescope used a laser to measure the changing distance to the Moon. [Frank Cianciolo/McDonald Observatory]

More information

2.7-meter Harlan J. Smith Telescope

McDonald Observatory Guidebook

Harlan James Smith, 1924-1991

In Memoriam: Harlan J. Smith

Every new research telescope has a few bugs to work out. But for a telescope that was used in April 1972, there wasn't much time for troubleshooting. The telescope was on the surface of the Moon, and the crew of Apollo 16 had only three moonwalks in which to set it up and aim it at its targets.

The telescopic camera was designed to look at the ultraviolet sky. Ultraviolet light is produced by hot, energetic objects, but it's absorbed by Earth's atmosphere, so it can't be studied from the ground. The Apollo 16 instrument was the first telescope of any kind ever sent to the Moon.

George Carruthers (left) explains the telescope to astronaut John Young. [NASA]

Physicist and engineer George Carruthers designed the Lunar Surface Ultraviolet Camera to look at the ultraviolet glow of Earth and to map as many ultraviolet-producing objects as possible during the brief moonwalks. Carruthers had tested smaller versions of the camera beginning in 1966 on sounding rockets, which briefly climb above the atmosphere before falling back to Earth.

A view of Earth and the stars from the ultraviolet camera. [NASA]

Apollo 16 commander John Young set up the telescope in the shadow of the Lunar Module, Orion, to keep it cool. Because the landing had been delayed by a mechanical problem, however, the Sun was at a higher angle than expected, so Orion's shadow was not as large as planned. With the changing angle to the camera's targets, Orion sometimes got in the way, too.

The camera was also hard to point. Its lubricant froze up, so it took some brute force to aim it, which often left the camera off-kilter.

Even so, it was a success. It snapped 178 pictures of Earth's aurora, the Milky Way, and other objects. It also obtained spectra of several objects, including the Large and Small Magellanic Clouds, two satellite galaxies of the Milky Way.

A backup version of the telescope later flew aboard the Skylab space station in Earth orbit, where astronauts used it to photograph Comet Kohoutek and other targests.

Today, several orbiting telescopes observe the universe in ultraviolet light, and scientists and engineers are developing plans for possible future telescopes on the Moon. Since the Moon has no atmosphere, images taken from the surface are sharper than those shot from Earth-bound telescopes. Telescopes can operate day and night, since the sky remains black. And the Moon offers a stable platform for astronomical observations. But the ubiquitous lunar dust could be a problem, gumming up mechanical parts and short-circuiting electronics, and temperature control could be a problem as well.

Even so, recent efforts have looked at ways to make telescope mirrors and other parts from the lunar soil, or to build giant spinning mirrors filled with a reflective liquid material. Such efforts are built in part on the success of the Apollo 16 experiment more than a third of a century ago.

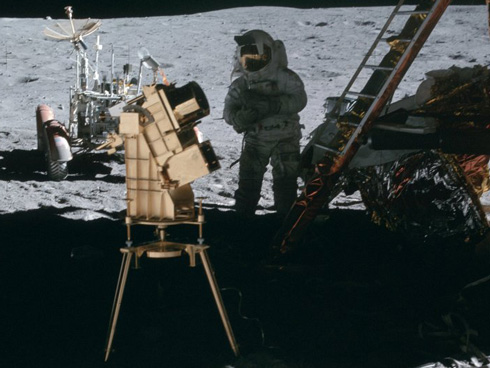

Astronaut Charles Duke stands behind the ultraviolet telescope. [NASA]
